Description
1. Drilling into the edge of the work piece.
2. Drilling on surface near the end of the work piece.
Drilling in any place. Adjusting with 1 mm pitch.
Drilling with any diameter from 3 mm to 10 mm.
Drilling with standard drill (we recommend to use metal drills).

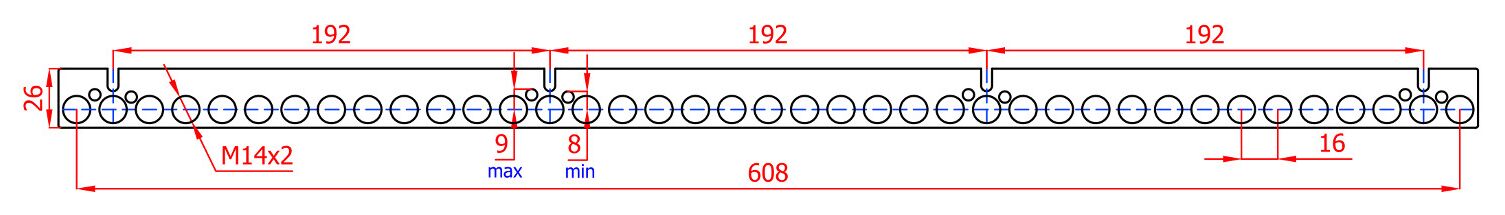

The main dimensions of the Termite v.5_26 mm (paint) - plate:
Configuration:
1. Termite v.5_26 mm (paint) - plate - 1 pc.
Attention! Fastening the plate to the template - comes with the Termite template v.5
1. Screw drill bushings into "Termite" furniture template.
2. Adjust the template for the required action.
May be it will be needed to apply one of the attachments.
3. Check everything thoroughly before drilling.
If you have any doubts, perform test drilling using pilot sample.
4. Perform drilling on the work piece.

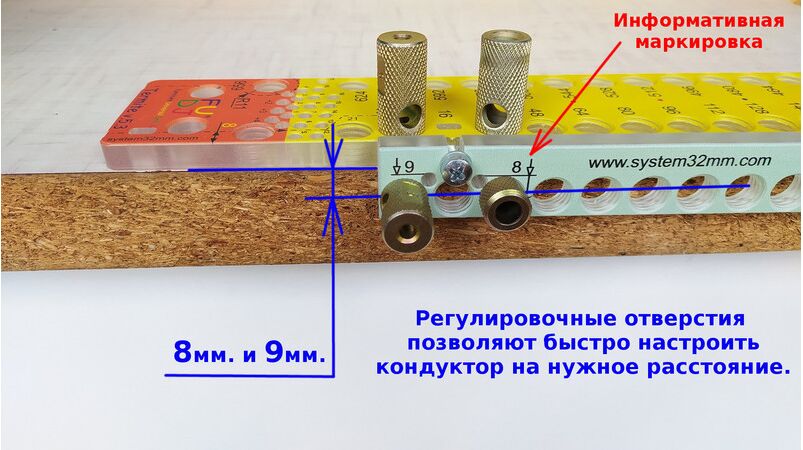

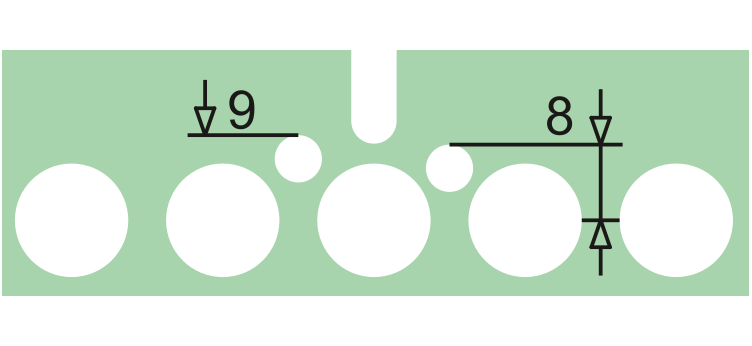

1. Insert the ties into the quick adjustment holes.
2. Install the strike plate on the end of the template with the grooves in the fixing screws.
3. Push the screeds into the lower plane of the template.
4. Tighten the fixing screws.
5. Pull out the screed.
The template is ready for drilling at the end and near the end.
It remains only to twist the necessary bushings for drilling.

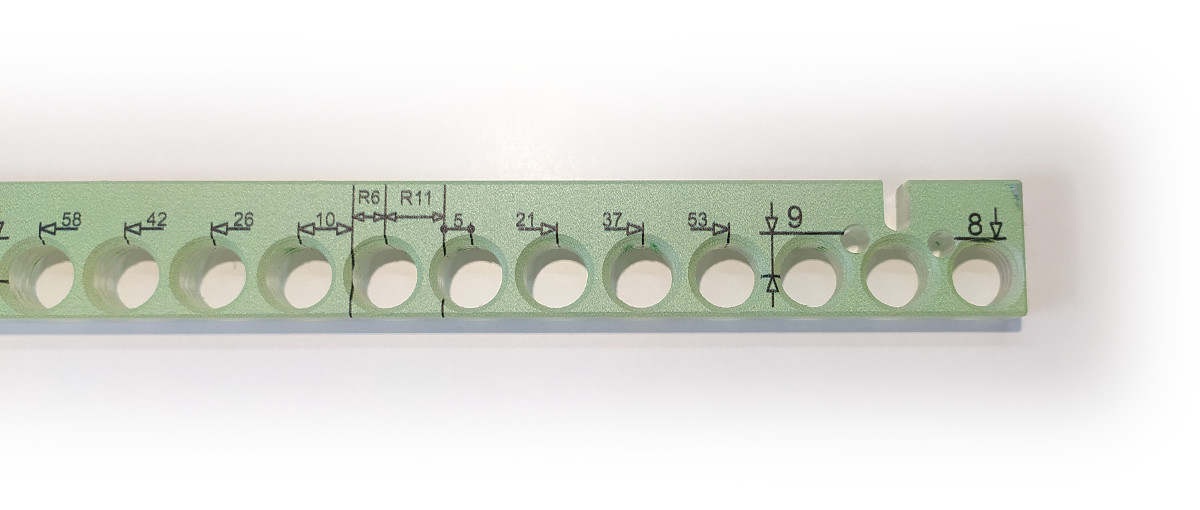

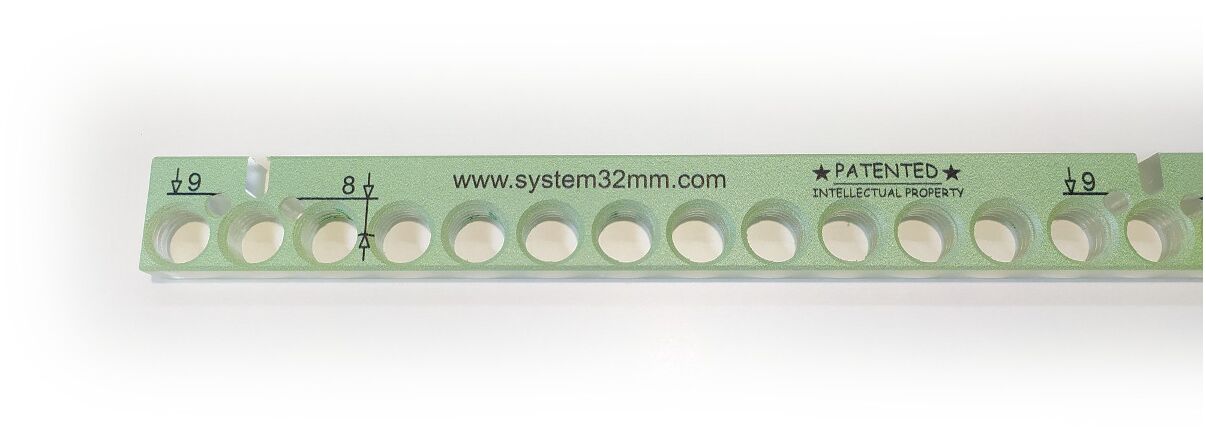

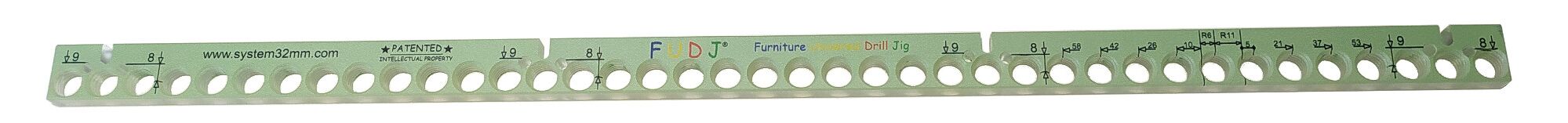

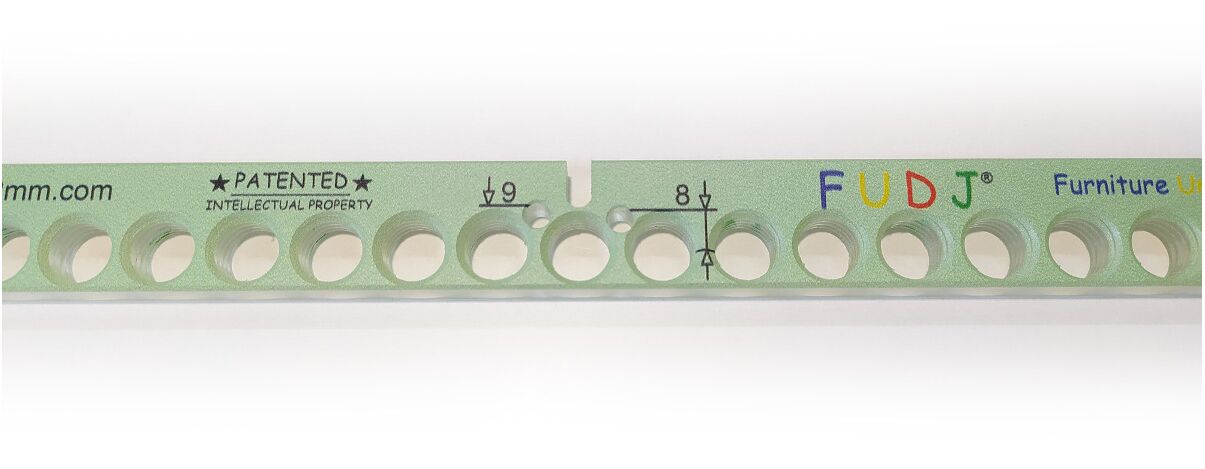

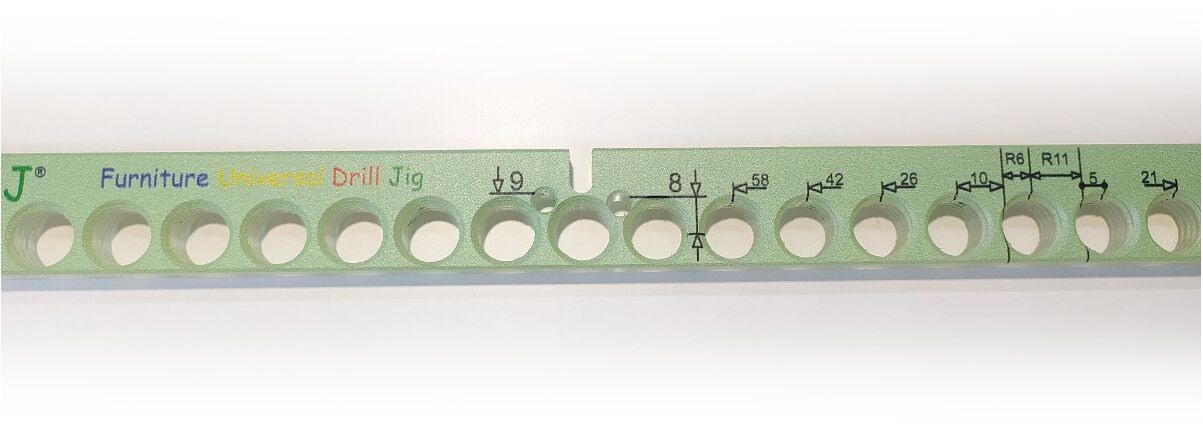

1. The plate is completely painted.
Nice and easy to read information.
1. Фиксация.
Обрабатываемая заготовка должна быть крепко зафиксирована на рабочем столе.
Кондуктор так же должен крепко фиксироваться на заготовке.
Не допускается работать с "ёрзанием".
Иначе точность результата работы уже не будет зависеть от точности кондуктора.
2. Сначала в торец а потом в плоскость.
Советуем сначала сверлить в торец заготовок. А потом уже сверлить заготовки в плоскость.
Так как иногда в конструкции могут быть утопленные детали относительно друг друга.
И в основном полки утапливаются по отношению стоек.
Это поможет избежать ошибок в процессе работы.
3. Пометки на заготовке.
Не стесняйтесь делать пометки (карандашом или даже маркером) на заготовках.
Чтоб четко видеть где лицевая/тыльная сторона заготовки, внутренняя/внешняя часть и др.
Это поможет избежать ошибок в процессе работы.
